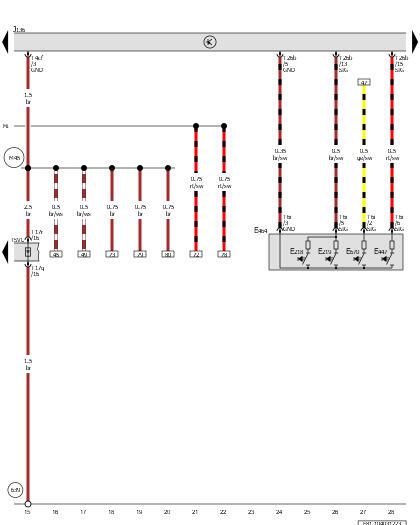

Driver Seat Memory Settings Control Head, Memory Seat/Steering Column Adjustment Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E218

Memory Seat Position 1 Button

E219

Memory Seat Position 2 Button

E447

Seat Position Memory Button

E464

Driver Seat Memory Settings Control Head

E670

Driver Side Massage Function Button

J136

Memory Seat/Steering Column Adjustment Control Module

T4cf

4-Pin Connector, Black

T6i

6-Pin Connector, Brown

T17q

17-Pin Connector, Red

T17r

17-Pin Connector, Red

T26b

26-Pin Connector, White

TSVL

Left Front Seat Coupling Station

639

Ground Connection on Left A-Pillar

M1

Positive Connection 1 (30) (in Seat Adjustment Wiring Harness)

M45

Connection 5 (in Driver Seat Wiring Harness)
