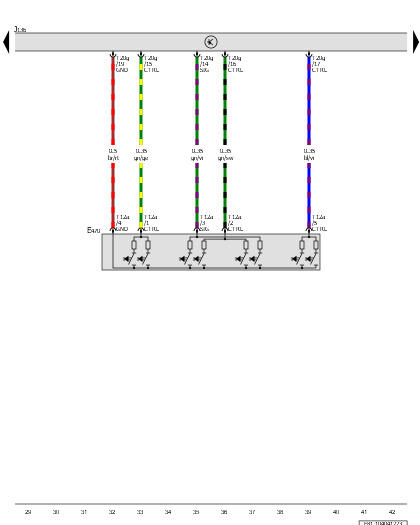

Driver Seat Adjustment Control Head, Memory Seat/Steering Column Adjustment Control Module

GWWE81-104041223Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E470

Driver Seat Adjustment Control Head

J136

Memory Seat/Steering Column Adjustment Control Module

T12a

12-Pin Connector, Black

T20g

20-Pin Connector, Black
