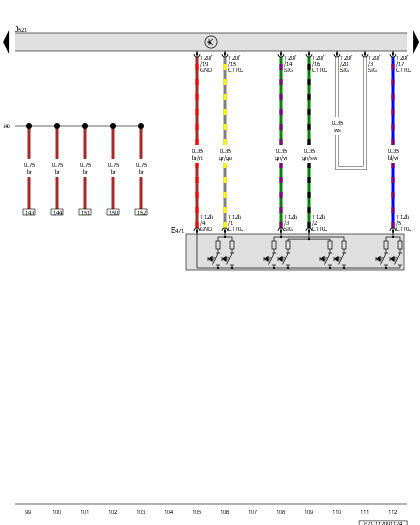

Front Passenger Seat Adjustment Control Head, Front Passenger Memory Seat Control Module

GWWE21-112091124Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E471

Front Passenger Seat Adjustment Control Head

J521

Front Passenger Memory Seat Control Module

T12b

12-Pin Connector, Black

T20f

20-Pin Connector, Black

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)
