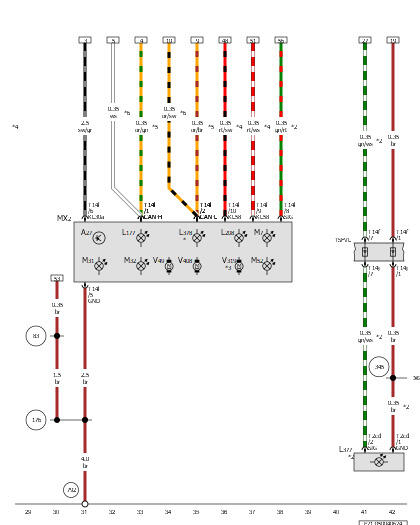

Right Front Headlamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A27

Right LED Headlamp Power Output Module 1

L177

Right Daytime Running Lamp and Position Lamp LED Module

L208

Right Variable Headlamp Bulb

L377

Left Daytime Running Lamp LED Module

L378

Right Daytime Running Lamp LED Module

MX2

Right Front Headlamp

M7

Right Front Turn Signal Bulb

M31

Right Low Beam Headlamp Bulb

M32

Right High Beam Headlamp Bulb

M52

Right Stationary Cornering Lamp

T2cd

2-Pin Connector, Black

T14f

14-Pin Connector, Black

T14j

14-Pin Connector, Black

T14l

14-Pin Connector, Black

TSFVL

Coupling Point on Left Front Bumper

V49

Right Headlamp Range Control Adjustment Motor

V319

Right Adaptive Cornering Lamp Motor

V408

Right Headlamp Fan

83

Ground Connection 1 (in Right Front Wiring Harness)

176

Ground Connection (in Right Headlamp Wiring Harness)

345

Ground Connection (in Bumper Wiring Harness)

792

Ground Connection in Right Front Wheel Housing

*

For Vehicles Without Top Sport Equipment

*2

For Vehicles with Top Sport Equipment

*3

For Vehicles with Dynamic Cornering Lamp

*4

For Vehicles with Ambient Lighting

*5

For Vehicles Without UNECE Cyber Security

*6

For Vehicles with UNECE Cyber Security
