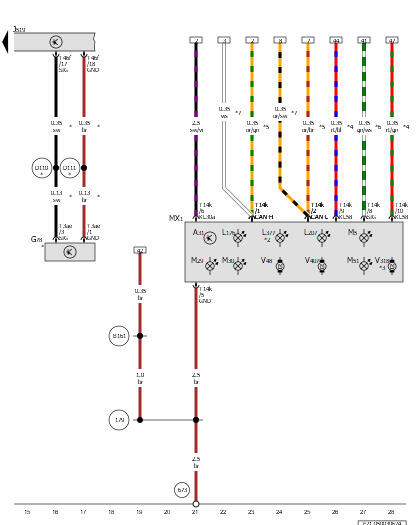

Left Front Level Control System Sensor, Vehicle Electrical System Control Module, Left Front Headlamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A31

Left LED Headlamp Power Output Module 1

G78

Left Front Level Control System Sensor

J519

Vehicle Electrical System Control Module

L176

Left Daytime Running Lamp and Position Lamp LED Module

L207

Left Variable Headlamp Bulb

L377

Left Daytime Running Lamp LED Module

MX1

Left Front Headlamp

Left Front Turn Signal Bulb

M29

Left Low Beam Headlamp Bulb

M30

Left High Beam Headlamp Bulb

M51

Left Stationary Cornering Lamp

T3ae

3-Pin Connector, Black

T14k

14-Pin Connector, Black

T46f

46-Pin Connector, Black

V48

Left Headlamp Range Control Adjustment Motor

V318

Left Adaptive Cornering Lamp Motor

V407

Left Headlamp Fan

179

Ground Connection (in Left Headlamp Wiring Harness)

673

Ground Connection 3 on Left Front Longitudinal Member

B161

Anti-Theft Alarm System Connection (in Interior Wiring Harness)

D110

Connection 8 (in Engine/Motor Compartment Wiring Harness)

D111

Connection 9 (in Engine/Motor Compartment Wiring Harness)

Depending on Equipment

For Vehicles Without Top Sport Equipment

For Vehicles with Dynamic Cornering Lamp

For Vehicles with Ambient Lighting

For Vehicles Without UNECE Cyber Security

For Vehicles with Top Sport Equipment

For Vehicles with UNECE Cyber Security
