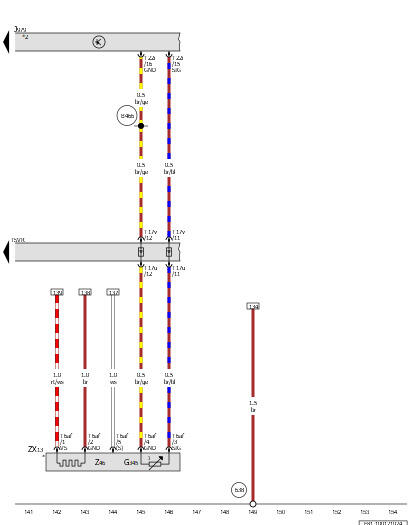

Heating And Air Conditioning Control Module, Right Front Seat Heater

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G345

Right Front Seat Temperature Sensor

J979

Heating and Air Conditioning Control Module

T6af

6-Pin Connector, Black

T17u

17-Pin Connector, Red

T17v

17-Pin Connector, Red

T22i

22-Pin Connector, Black

TSVR

Right Front Seat Coupling Station

ZX13

Right Front Seat Heater

Z46

Right Front Seat Heating Element

638

Ground Connection on Right A-Pillar

B466

Connection 2 (in Main Wiring Harness)

*

Pre-Wired Component

*2

Refer to the Applicable Heated Seats Wiring Diagram
