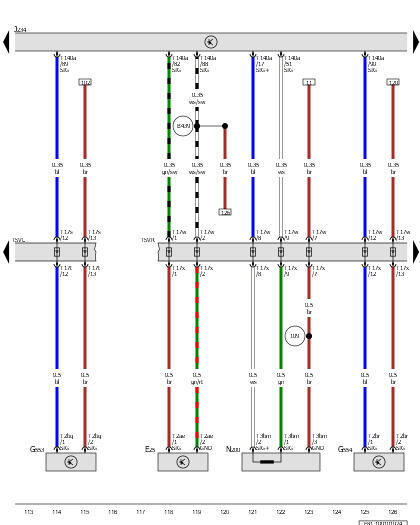

Front Passenger Seat Belt Switch, Driver Seat Position Sensor, Front Passenger Seat Position Sensor, Airbag Control Module, Front Passenger Thorax Airbag Igniter
E25
Front Passenger Seat Belt Switch
G553
Driver Seat Position Sensor
G554
Front Passenger Seat Position Sensor
J234
Airbag Control Module
N200
Front Passenger Thorax Airbag Igniter
T2ae
2-Pin Connector, Black
T2bq
2-Pin Connector, Black
T2br
2-Pin Connector, Black
T3bm
3-Pin Connector, Yellow
T17s
17-Pin Connector, Yellow
T17t
17-Pin Connector, Yellow
T17w
17-Pin Connector, Yellow
T17x
17-Pin Connector, Yellow
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
109
Ground Connection (in Airbag Wiring Harness)
B439
Ground Connection 3 (in Main Wiring Harness)
