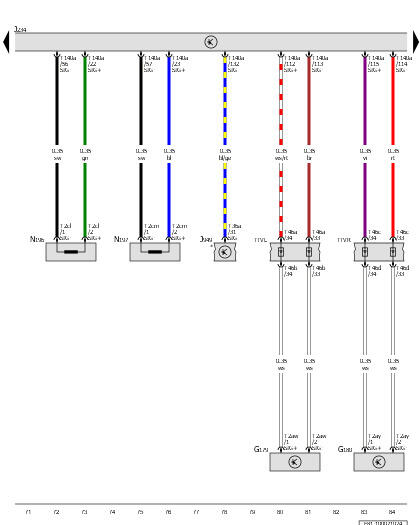

Driver Thorax Airbag Crash Sensor, Front Passenger Thorax Airbag Crash Sensor, Airbag Control Module, Control Module For Emergency Call Module And Communication Unit, Driver Side Rear Seat Belt TENSIONER Igniter, Passenger Side Rear Seat Belt TENSIONER Igniter
G179
Driver Thorax Airbag Crash Sensor
G180
Front Passenger Thorax Airbag Crash Sensor
J234
Airbag Control Module
J949
Control Module for Emergency Call Module and Communication Unit
N196
Driver Side Rear Seat Belt Tensioner Igniter
N197
Passenger Side Rear Seat Belt Tensioner Igniter
T2aw
2-Pin Connector, Yellow
T2ay
2-Pin Connector, Yellow
T2cl
2-Pin Connector, Yellow
T2cm
2-Pin Connector, Yellow
T36a
36-Pin Connector, Black
T46a
46-Pin Connector, Black
T46b
46-Pin Connector, Black
T46c
46-Pin Connector, Black
T46d
46-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TTVL
Left Front Door Coupling Point
TTVR
Right Front Door Coupling Point
*
Refer to Applicable Emergency Call Module Wiring Diagram
