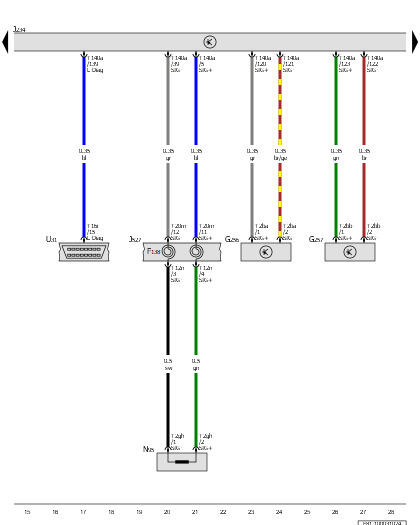

Driver Side Rear Thorax Airbag Crash Sensor, Passenger Side Rear Thorax Airbag Crash Sensor, Airbag Control Module, Steering Column Electronics Control Module, Driver Airbag Igniter, Diagnostic Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F138

Airbag Spiral Spring/Return Spring with Slip Ring

G256

Driver Side Rear Thorax Airbag Crash Sensor

G257

Passenger Side Rear Thorax Airbag Crash Sensor

J234

Airbag Control Module

J527

Steering Column Electronics Control Module

N95

Driver Airbag Igniter

T2ba

2-Pin Connector, Yellow

T2bb

2-Pin Connector, Yellow

T2gh

2-Pin Connector, Yellow

T12n

12-Pin Connector, Purple

T16i

16-Pin Connector, Black

T20m

20-Pin Connector, Brown

T140a

140-Pin Connector, Yellow

U31

Diagnostic Connection
