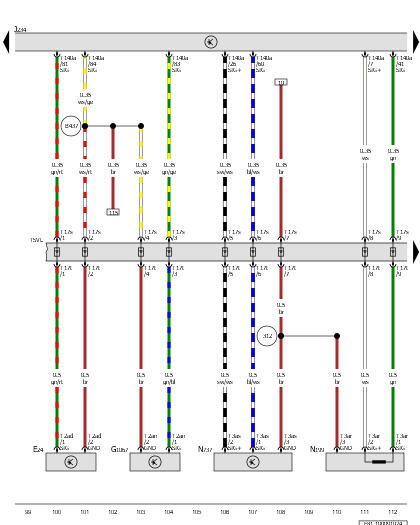

Driver Seat Belt Switch, Driver Side Seat Occupant Detection Sensor, Airbag Control Module, Driver Thorax Airbag Igniter, Driver Side Front Center Airbag Igniter For Occupant Contact Protection
E24
Driver Seat Belt Switch
G1067
Driver Side Seat Occupant Detection Sensor
J234
Airbag Control Module
N199
Driver Thorax Airbag Igniter
N737
Driver Side Front Center Airbag Igniter for Occupant Contact Protection
T2ad
2-Pin Connector, Black
T2an
2-Pin Connector, Blue
T3ar
3-Pin Connector, Yellow
T3as
3-Pin Connector, Yellow
T17s
17-Pin Connector, Yellow
T17t
17-Pin Connector, Yellow
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
312
Ground Connection 2 (in Airbag Wiring Harness)
B437
Ground Connection 1 (in Main Wiring Harness)
