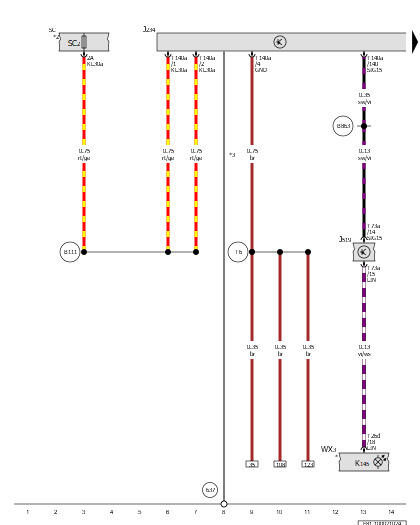

Airbag Control Module, Vehicle Electrical System Control Module, Fuse Panel C, Front Roof Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

J519

Vehicle Electrical System Control Module

K145

Front Passenger Airbag -Disabled- Indicator Lamp

SC

Fuse Panel C

SC2

Fuse 2 (On Fuse Panel C)

T26d

26-Pin Connector, Black

T73a

73-Pin Connector, Black

T140a

140-Pin Connector, Yellow

WX3

Front Roof Module

637

Airbag Control Module Ground Connection

B111

Positive Connection 1 (30a) (in Interior Wiring Harness)

B863

Connection 30 (in Steering Wheel Wiring Harness)

T6

Connection (in Thorax Airbag Wiring Harness)

*

Refer to Applicable Wiring Diagram for Interior Lamps

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

Ground Supply via the Housing
