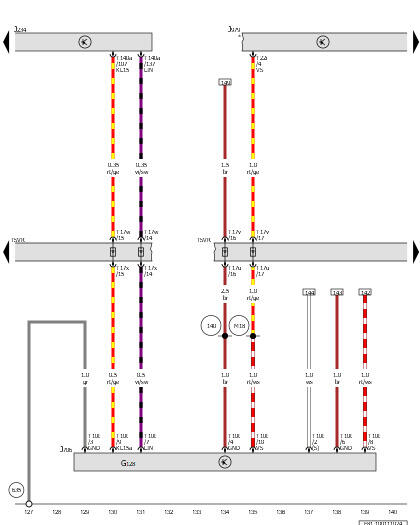

Airbag Control Module, Seat Occupant Detection System Control Module, Heating And Air Conditioning Control Module
G128
Passenger Seat Occupant Detection Sensor
J234
Airbag Control Module
J706
Seat Occupant Detection System Control Module
J979
Heating and Air Conditioning Control Module
T10t
10-Pin Connector, Black
T17u
17-Pin Connector, Red
T17v
17-Pin Connector, Red
T17w
17-Pin Connector, Yellow
T17x
17-Pin Connector, Yellow
T22i
22-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TSVR
Right Front Seat Coupling Station
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
635
Front Passenger Seat Control Module Ground Connection
M18
Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)
*
Refer to the Applicable Heated Seats Wiring Diagram
