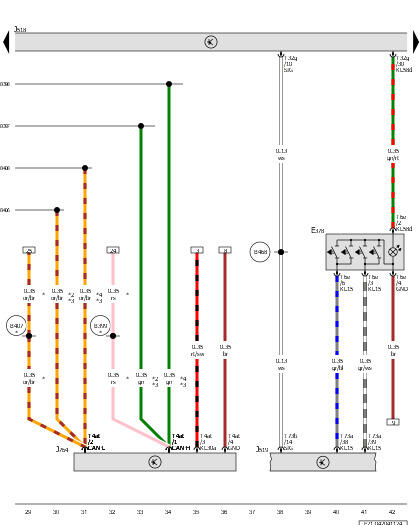

Start System Button, Access/Start Authorization Control Module, Vehicle Electrical System Control Module, Electronic Steering Column Lock Control Module
E378
Start System Button
J518
Access/Start Authorization Control Module
J519
Vehicle Electrical System Control Module
J764
Electronic Steering Column Lock Control Module
T4at
4-Pin Connector, Black
T6e
6-Pin Connector, Black
T32g
32-Pin Connector, Gray
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
B397
Comfort System CAN Bus, High Connection 1 (in Main Wiring Harness)
B398
Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)
B399
Comfort System CAN Bus, High Connection 3 (in Main Wiring Harness)
B406
Comfort System CAN Bus, Low Connection 1 (in Main Wiring Harness)
B407
Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)
B408
Comfort System CAN Bus, Low Connection 3 (in Main Wiring Harness)
B468
Connection 4 (in Main Wiring Harness)
*
For Vehicles with UNECE Cyber Security
*2
For RHD Vehicles
*3
For Vehicles Without UNECE Cyber Security
*4
For LHD Vehicles
