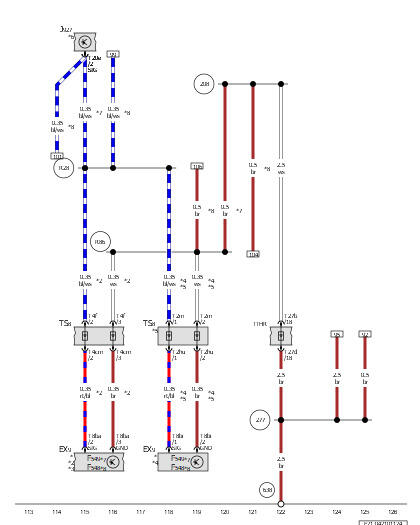

Right Rear Exterior Door Handle, Passenger Side Rear Door Control Module
EX9
Right Rear Exterior Door Handle
F548
Driver Side Rear Exterior Door Handle Switch
F549
Passenger Side Rear Exterior Door Handle Switch
J927
Passenger Side Rear Door Control Module
T2hu
2-Pin Connector, Red
T2m
2-Pin Connector, Red
T4cm
4-Pin Connector, White
T4f
4-Pin Connector, Black
T8ba
8-Pin Connector, Gray
T8bi
8-Pin Connector, Black
T20e
20-Pin Connector, White
T27b
27-Pin Connector, Black
T27d
27-Pin Connector, Black
TS8
Coupling Point 2 in Right Rear Door
TTHR
Right Rear Door Coupling Point
208
Ground Connection (in Right Rear Door Wiring Harness)
277
Ground Connection 3 (in Interior Wiring Harness)
638
Ground Connection on Right A-Pillar
R28
Door Contact Switch Connection 2 (in Rear Wiring Harness)
R86
Central Locking Connection 1 (in Right Rear Door Wiring Harness)
*
Pre-Wired Component
*2
For Vehicles with Ambient Lighting
*3
Refer to Applicable Ambient Lighting Wiring Diagram
*4
For Vehicles Without Ambient Lighting
*5
Not for USA
*6
Refer to Applicable Front Passenger Door Control Module Wiring Diagram
*7
For LHD Vehicles
*8
For RHD Vehicles
