Burglary Protection Control Module 3, Burglary Protection Control Module 4

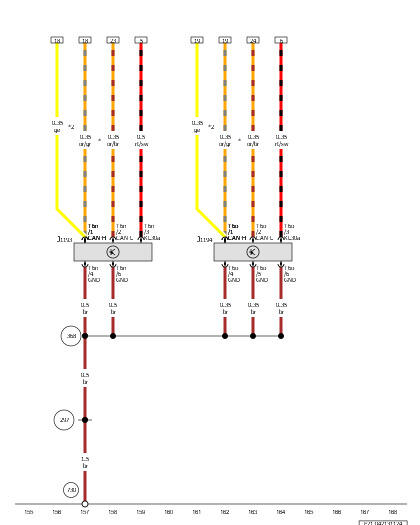

GWWE21-042131124Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J1193

Burglary Protection Control Module 3

J1194

Burglary Protection Control Module 4

T6n

6-Pin Connector, Black

T6o

6-Pin Connector, Black

297

Ground Connection 12 (in Interior Wiring Harness)

368

Ground Connection 3 (in Main Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

*

For Vehicles Without UNECE Cyber Security

*2

For Vehicles with UNECE Cyber Security
