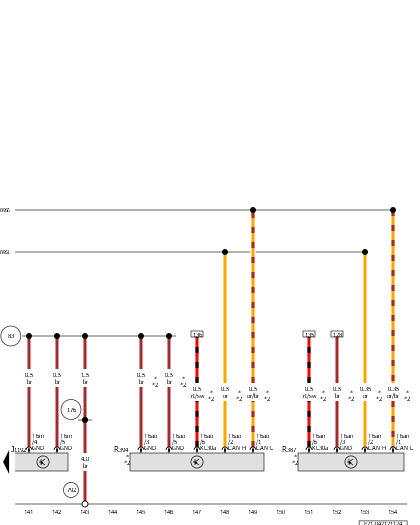

Burglary Protection Control Module 2, Antenna For External Communication With Vehicle, Antenna 2 For External Communication With Vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J1192

Burglary Protection Control Module 2

R387

Antenna for External Communication with Vehicle

R394

Antenna 2 for External Communication with Vehicle

T6an

6-Pin Connector, Black

T6ao

6-Pin Connector, Black

T6m

6-Pin Connector, Black

83

Ground Connection 1 (in Right Front Wiring Harness)

176

Ground Connection (in Right Headlamp Wiring Harness)

792

Ground Connection in Right Front Wheel Housing

B951

Connection 2 (CAN Bus Connectivity High) in Main Wiring Harness

B956

Connection 2 (CAN Bus Connectivity Low) in Main Wiring Harness

*

For Vehicles with Bluetooth Antenna

*2

For Vehicles with UNECE Cyber Security
