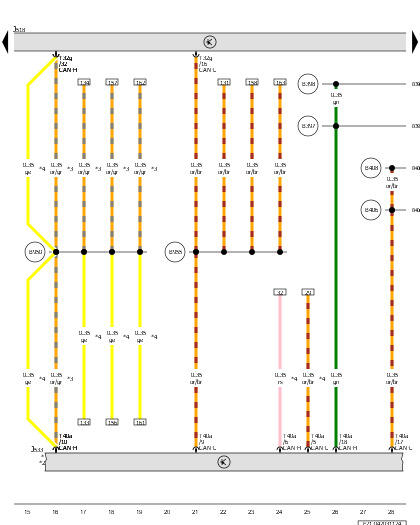

Access/Start Authorization Control Module, Data Bus On Board Diagnostic Interface
J518
Access/Start Authorization Control Module
J533
Data Bus on Board Diagnostic Interface
T32g
32-Pin Connector, Gray
T40a
40-Pin Connector, Black
B397
Comfort System CAN Bus, High Connection 1 (in Main Wiring Harness)
B398
Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)
B406
Comfort System CAN Bus, Low Connection 1 (in Main Wiring Harness)
B408
Comfort System CAN Bus, Low Connection 3 (in Main Wiring Harness)
B950
Connection 1 (CAN Bus Connectivity High) in Main Wiring Harness
B955
Connection 1 (CAN Bus Connectivity Low) in Main Wiring Harness
*
Refer to the Applicable Communication CAN Bus Network Data Bus Wiring Diagram
*2
Refer to the Applicable Convenience CAN Bus Network Data Bus Wiring Diagram
*3
For Vehicles Without UNECE Cyber Security
*4
For Vehicles with UNECE Cyber Security
