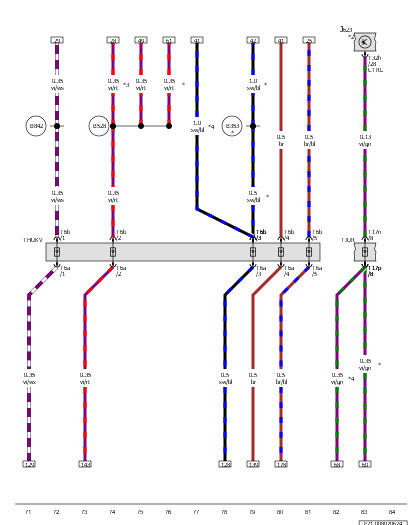

Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J623

Engine/Motor Control Module

T6a

6-Pin Connector, Black

T6b

6-Pin Connector, Black

T17n

17-Pin Connector, Brown

T17p

17-Pin Connector, Brown

T32h

32-Pin Connector, Blue

THUKV

Front Heating and Air Conditioning Coupling Point

TIUR

Coupling Point in Interior, Bottom Right

B353

Positive Connection 4 (87a) (in Main Wiring Harness)

B528

LIN Bus Connection 1 (in Main Wiring Harness)

B842

LIN Bus Connection 8 (in Main Wiring Harness)

*

Through June 2023

*2

Refer to Applicable Electric Drive System, Engine/Motor Control Module Wiring Diagram

*3

For Vehicles Without UNECE Cyber Security

*4

From June 2023
