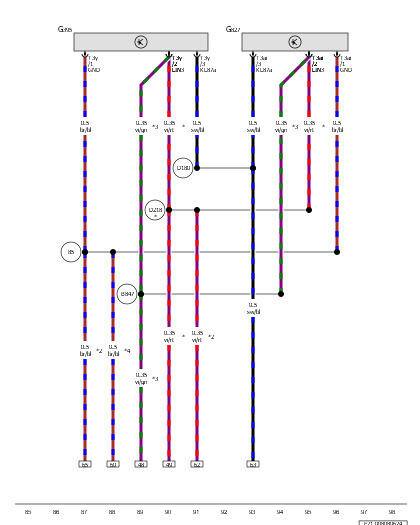

A/C Pressure/Temperature Sensor, A/C Pressure/Temperature Sensor 3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G395

A/C Pressure/Temperature Sensor

G827

A/C Pressure/Temperature Sensor 3

T3ai

3-Pin Connector, Brown

T3y

3-Pin Connector, Black

85

Ground Connection 1 (in Engine/Motor Compartment Wiring Harness)

B847

LIN Bus Connection 11 (in Main Wiring Harness)

D180

Connection 87A (in Engine/Motor Compartment Wiring Harness)

D218

Connection 1 (LIN Bus) (in Engine/Motor Compartment Wiring Harness)

*

For Vehicles Without UNECE Cyber Security

*2

Through June 2023

*3

For Vehicles with UNECE Cyber Security

*4

From June 2023
