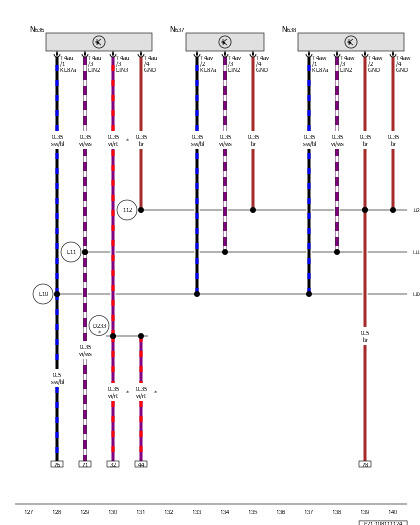

Refrigerant Expansion Valve 1, Refrigerant Expansion Valve 2, Refrigerant Expansion Valve 3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

N636

Refrigerant Expansion Valve 1

N637

Refrigerant Expansion Valve 2

N638

Refrigerant Expansion Valve 3

T4au

4-Pin Connector, Black

T4av

4-Pin Connector, Black

T4aw

4-Pin Connector, Black

112

Ground Connection 2 (in A/C Wiring Harness)

D233

Connection 2 (LIN Bus) (in Engine/Motor Compartment Wiring Harness)

L10

Connection 2 (in A/C System Wiring Harness)

L11

Connection 3 (in A/C System Wiring Harness)

*

For Vehicles with UNECE Cyber Security
