Front Suspension Coupling Point

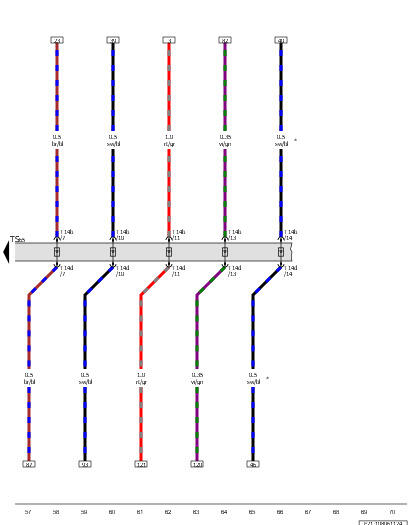

GWWE21-108061124Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

T14b

14-Pin Connector, Black

T14d

14-Pin Connector, Black

TS65

Front Suspension Coupling Point

*

For Vehicles with UNECE Cyber Security
