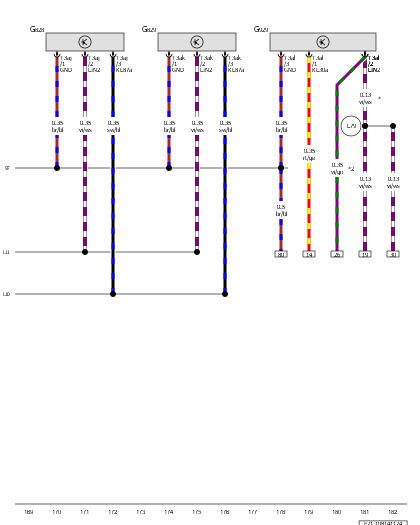

A/C Pressure/Temperature Sensor 4, A/C Pressure/Temperature Sensor 5, Vehicle Interior Carbon Dioxide Concentration Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G828

A/C Pressure/Temperature Sensor 4

G829

A/C Pressure/Temperature Sensor 5

G929

Vehicle Interior Carbon Dioxide Concentration Sensor

T3aj

3-Pin Connector, Brown

T3ak

3-Pin Connector, Gray

T3al

3-Pin Connector, Blue

97

Ground Connection 1 (in A/C Wiring Harness)

L10

Connection 2 (in A/C System Wiring Harness)

L11

Connection 3 (in A/C System Wiring Harness)

L79

Connection 4 (in A/C System Wiring Harness)

*

For Vehicles Without UNECE Cyber Security

*2

For Vehicles with UNECE Cyber Security
