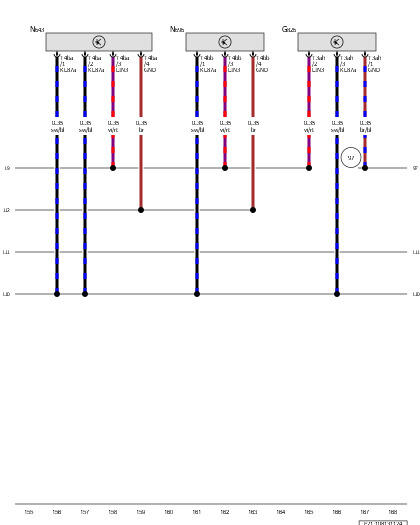

A/C Pressure/Temperature Sensor 2, Refrigerant Shut-Off Valve 5, Refrigerant Shut-Off Valve 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G826

A/C Pressure/Temperature Sensor 2

N643

Refrigerant Shut-Off Valve 5

N696

Refrigerant Shut-Off Valve 1

T3ah

3-Pin Connector, Gray

T4ba

4-Pin Connector, Black

T4bb

4-Pin Connector, Black

97

Ground Connection 1 (in A/C Wiring Harness)

112

Ground Connection 2 (in A/C Wiring Harness)

L9

Connection 1 (in A/C System Wiring Harness)

L10

Connection 2 (in A/C System Wiring Harness)

L11

Connection 3 (in A/C System Wiring Harness)
