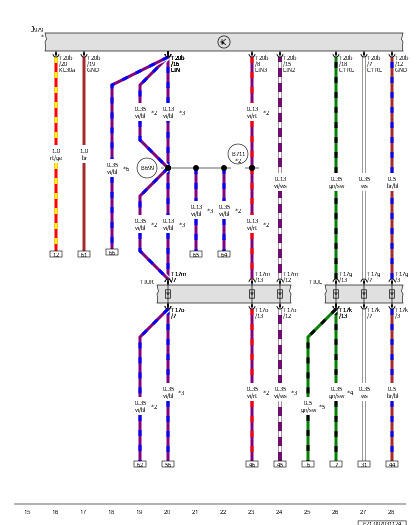

Heating And Air Conditioning Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J979

Heating and Air Conditioning Control Module

T17g

17-Pin Connector, Red

T17k

17-Pin Connector, Red

T17m

17-Pin Connector, Black

T17o

17-Pin Connector, Black

T20b

20-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

TIUR

Coupling Point in Interior, Bottom Right

B699

LIN Bus Connection 4 (in Main Wiring Harness)

B711

LIN Bus Connection 6 (in Main Wiring Harness)

*

Refer to Applicable A/C System Wiring Diagram

*2

For Vehicles with UNECE Cyber Security

*3

For Vehicles Without UNECE Cyber Security

*4

Through June 2023

*5

From June 2023

*6

For Vehicles with Driving School Special Equipment
