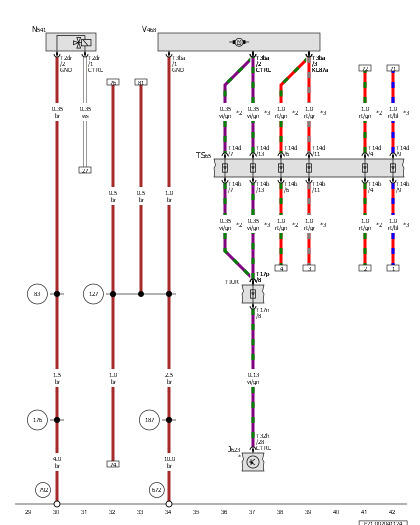

Engine/Motor Control Module, Heater And A/C Unit Refrigerant Shut-Off Valve, Low Temperature Circuit Coolant Pump
J623
Engine/Motor Control Module
N541
Heater and A/C Unit Refrigerant Shut-Off Valve
T2dr
2-Pin Connector, Black
T3ba
3-Pin Connector, Black
T14b
14-Pin Connector, Black
T14d
14-Pin Connector, Black
T17n
17-Pin Connector, Brown
T17p
17-Pin Connector, Brown
T32h
32-Pin Connector, Blue
TIUR
Coupling Point in Interior, Bottom Right
TS65
Front Suspension Coupling Point
V468
Low Temperature Circuit Coolant Pump
83
Ground Connection 1 (in Right Front Wiring Harness)
127
Ground Connection 1 (in A/C Compressor Wiring Harness)
176
Ground Connection (in Right Headlamp Wiring Harness)
187
Ground Connection 2 (in A/C Compressor Wiring Harness)
672
Ground Connection 2 on Left Front Longitudinal Member
792
Ground Connection in Right Front Wheel Housing
*
Refer to Applicable Electric Drive System, Engine/Motor Control Module Wiring Diagram
*2
Through June 2023
*3
From June 2023
