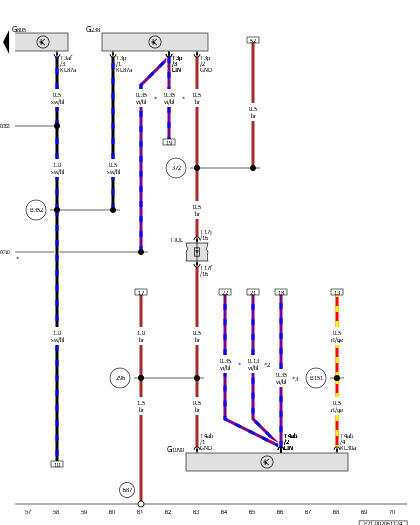

Air Quality Sensor, Refrigerant Circuit Pressure Sensor, Vehicle Interior Temperature Sensor
G238
Air Quality Sensor
G805
Refrigerant Circuit Pressure Sensor
G1090
Vehicle Interior Temperature Sensor
T3af
3-Pin Connector, Black
T3p
3-Pin Connector, Gray
T4ab
4-Pin Connector, Black
T17f
17-Pin Connector, Brown
T17j
17-Pin Connector, Brown
TIUL
Coupling Point in Interior, Bottom Left
296
Ground Connection 11 (in Interior Wiring Harness)
372
Ground Connection 7 (in Main Wiring Harness)
687
Ground Connection 1 on Center Tunnel
B151
Positive Connection 3 (30a) (in Interior Wiring Harness)
B352
Positive Connection 3 (87a) (in Main Wiring Harness)
B353
Positive Connection 4 (87a) (in Main Wiring Harness)
B710
LIN Bus Connection 5 (in Main Wiring Harness)
*
For Vehicles with UNECE Cyber Security
*2
For Vehicles Without UNECE Cyber Security
*3
For Vehicles with Driving School Special Equipment
