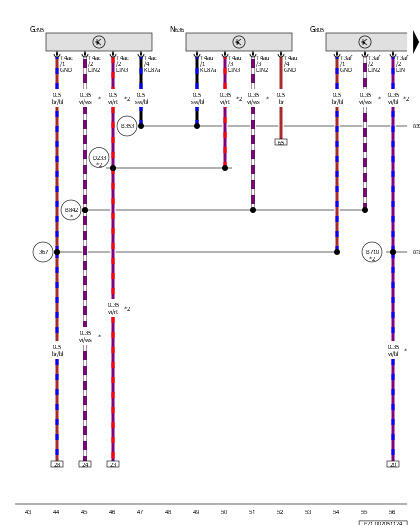

A/C Pressure/Temperature Sensor, Refrigerant Circuit Pressure Sensor, Refrigerant Expansion Valve 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G395

A/C Pressure/Temperature Sensor

G805

Refrigerant Circuit Pressure Sensor

N636

Refrigerant Expansion Valve 1

T3af

3-Pin Connector, Black

T4ac

4-Pin Connector, Brown

T4au

4-Pin Connector, Black

367

Ground Connection 2 (in Main Wiring Harness)

B353

Positive Connection 4 (87a) (in Main Wiring Harness)

B710

LIN Bus Connection 5 (in Main Wiring Harness)

B842

LIN Bus Connection 8 (in Main Wiring Harness)

D233

Connection 2 (LIN Bus) (in Engine/Motor Compartment Wiring Harness)

For Vehicles Without UNECE Cyber Security

For Vehicles with UNECE Cyber Security
