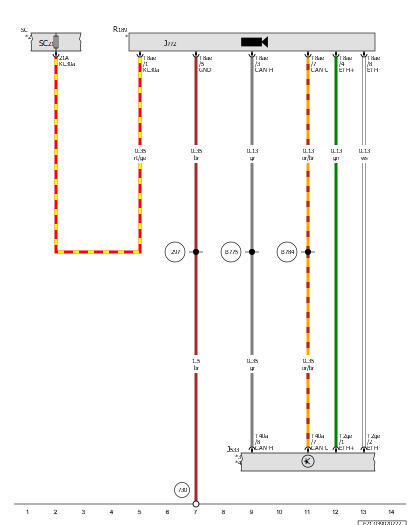

Data Bus On Board Diagnostic Interface, Rearview Camera, Fuse Panel C
J533
Data Bus on Board Diagnostic Interface
J772
Rearview Camera System Control Module
R189
Rearview Camera
SC
Fuse Panel C
SC21
Fuse 21 (On Fuse Panel C)
T2ge
2-Pin Connector, White
T8ae
8-Pin Connector, Black
T40a
40-Pin Connector, Black
297
Ground Connection 12 (in Interior Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
B775
Suspension Sensor CAN Bus High Connection 4 (in Main Wiring Harness)
B784
Suspension Sensor CAN Bus Low Connection 3 (in Main Wiring Harness)
*
Refer to the Applicable Rear Lid Remote Unlock Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Refer to the Applicable Suspension CAN Bus Network Data Bus Wiring Diagram
*4
Refer to the Applicable Ethernet Network Data Bus Wiring Diagram
