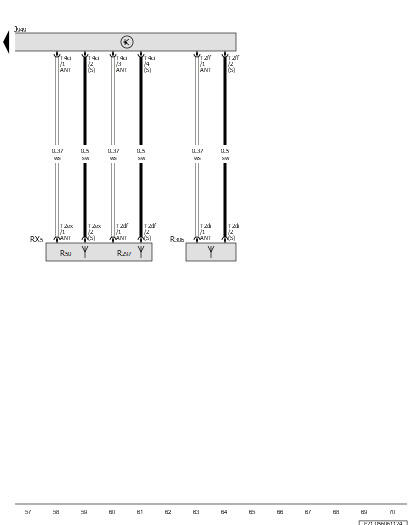

Control Module For Emergency Call Module And Communication Unit, Roof Antenna, LTE Antenna 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J949

Control Module for Emergency Call Module and Communication Unit

RX5

Roof Antenna

R50

GPS Antenna

R297

LTE Antenna 1

R306

LTE Antenna 2

T2df

2-Pin Connector, Purple

T2di

2-Pin Connector, Purple

T2ex

2-Pin Connector, Blue

T2ff

2-Pin Connector, Pink

T4ci

4-Pin Connector, Pink
