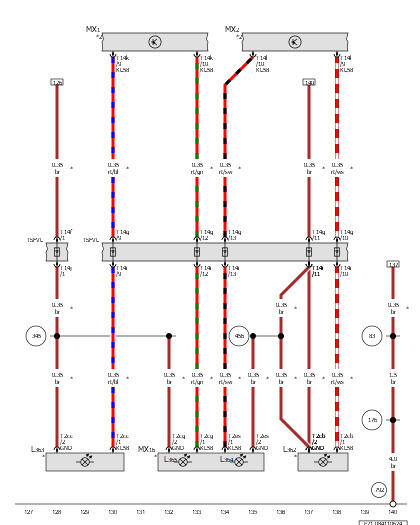

Fiber Optic Cable For Contour Illumination In Right Front Radiator Grille, Fiber Optic Cable For Contour Illumination In Left Front Radiator Grille, Left Front Headlamp, Right Front Headlamp
L362
Fiber Optic Cable for Contour Illumination in Right Front Radiator Grille
L363
Fiber Optic Cable for Contour Illumination in Left Front Radiator Grille
L364
Right Front Emblem - Side Contour Illumination
L365
Left Front Emblem - Side Contour Illumination
MX1
Left Front Headlamp
MX2
Right Front Headlamp
MX16
Front Emblem Contour Illumination Module
T2cb
2-Pin Connector, Black
T2cc
2-Pin Connector, Black
T2cg
2-Pin Connector, Black
T2es
2-Pin Connector, Gray
T14f
14-Pin Connector, Black
T14g
14-Pin Connector, Brown
T14i
14-Pin Connector, Brown
T14j
14-Pin Connector, Black
T14k
14-Pin Connector, Black
T14l
14-Pin Connector, Black
TSFVL
Coupling Point on Left Front Bumper
83
Ground Connection 1 (in Right Front Wiring Harness)
176
Ground Connection (in Right Headlamp Wiring Harness)
345
Ground Connection (in Bumper Wiring Harness)
456
Ground Connection 1 (in Front Bumper Wiring Harness)
792
Ground Connection in Right Front Wheel Housing
*
For USA Only
*2
Refer to Applicable Wiring Diagram for Headlamps
