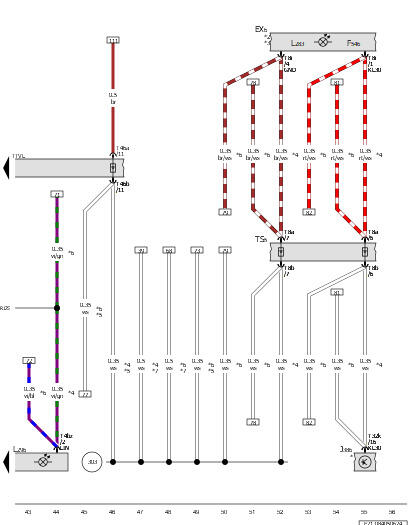

Driver Exterior Door Handle, Left Front Door Contour Illumination Lamp 2
EX6
Driver Exterior Door Handle
F546
Driver Side Exterior Door Handle Switch
J386
Driver Door Control Module
L283
Driver Side Exterior Door Handle Illumination Lamp
L296
Left Front Door Contour Illumination Lamp 2
T4bz
4-Pin Connector, Black
T8a
8-Pin Connector, Black
T8b
8-Pin Connector, Black
T8i
8-Pin Connector, Blue
T32k
32-Pin Connector, Blue
T46a
46-Pin Connector, Black
T46b
46-Pin Connector, Black
TS5
Coupling Point 2 in Left Front Door
TTVL
Left Front Door Coupling Point
303
Ground Connection 3 (in Driver Door Wiring Harness)
R125
LIN Bus Connection (in Driver Side Door Wiring Harness)
*
Refer to Applicable Driver Door Control Module Wiring Diagram
*2
Pre-Wired Component
*3
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*4
For LHD Vehicles
*5
Through November 2020
*6
For RHD Vehicles
*7
From November 2020
