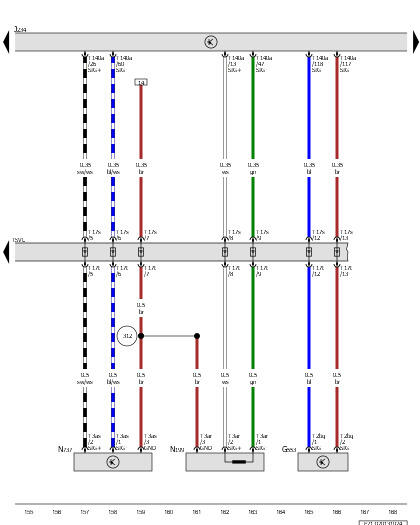

Driver Seat Position Sensor, Airbag Control Module, Driver Thorax Airbag Igniter, Driver Side Front Center Airbag Igniter For Occupant Contact Protection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G553

Driver Seat Position Sensor

J234

Airbag Control Module

N199

Driver Thorax Airbag Igniter

N737

Driver Side Front Center Airbag Igniter for Occupant Contact Protection

T2bq

2-Pin Connector, Black

T3ar

3-Pin Connector, Yellow

T3as

3-Pin Connector, Yellow

T17s

17-Pin Connector, Yellow

T17t

17-Pin Connector, Yellow

T140a

140-Pin Connector, Yellow

TSVL

Left Front Seat Coupling Station

312

Ground Connection 2 (in Airbag Wiring Harness)
