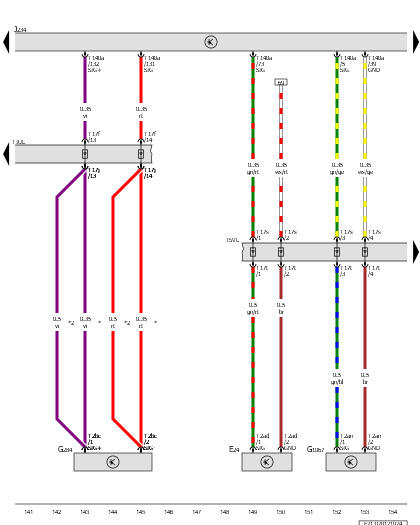

Driver Seat Belt Switch, Passenger Side Front Airbag Crash Sensor, Driver Side Seat Occupant Detection Sensor, Airbag Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E24

Driver Seat Belt Switch

G284

Passenger Side Front Airbag Crash Sensor

G1067

Driver Side Seat Occupant Detection Sensor

J234

Airbag Control Module

T2ad

2-Pin Connector, Black

T2an

2-Pin Connector, Blue

T2bc

2-Pin Connector, Yellow

T17f

17-Pin Connector, Brown

T17j

17-Pin Connector, Brown

T17s

17-Pin Connector, Yellow

T17t

17-Pin Connector, Yellow

T140a

140-Pin Connector, Yellow

TIUL

Coupling Point in Interior, Bottom Left

TSVL

Left Front Seat Coupling Station

*

Through June 2023

*2

From June 2023
