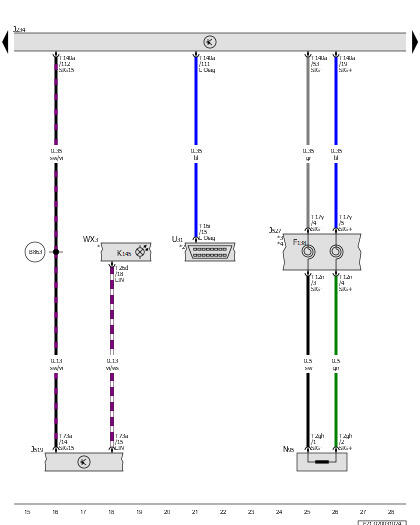

Airbag Control Module, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Driver Airbag Igniter, Diagnostic Connection, Front Roof Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F138

Airbag Spiral Spring/Return Spring with Slip Ring

J234

Airbag Control Module

J519

Vehicle Electrical System Control Module

J527

Steering Column Electronics Control Module

K145

Front Passenger Airbag Disabled Indicator Lamp

N95

Driver Airbag Igniter

T2gh

2-Pin Connector, Yellow

T12n

12-Pin Connector, Purple

T16i

16-Pin Connector, Black

T17y

17-Pin Connector, Yellow

T26d

26-Pin Connector, Black

T73a

73-Pin Connector, Black

T140a

140-Pin Connector, Yellow

U31

Diagnostic Connection

WX3

Front Roof Module

B863

Connection 30 (in Steering Wheel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Interior Lamps

*2

Refer to Applicable Wiring Diagram for Data Bus Networking

*3

Refer to Applicable Power Steering Column Adjustment Wiring Diagram

*4

Refer to Applicable Wiring Diagram for Multifunction Steering Wheel
