Overview - Rear Brakes, Drum Brakes

The overview shows the left side of the vehicle as an example

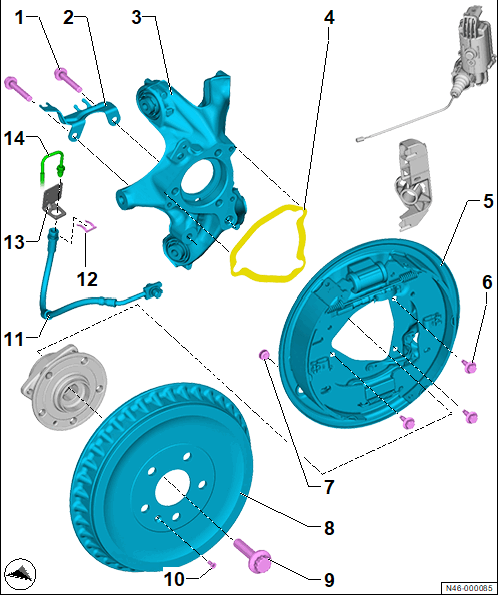

Fig 1: Exploded View Of Component Rear Brakes, Drum Brakes

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Internal Multi-Point Bolt
   • Quantity: 4
   • Replace after removing
   • M10 x 58
   • 50 Nm + 180°
2. Bracket
3. Wheel Bearing Housing
   • Refer to Overview - Wheel Bearing .
4. Seal
   • Replace after removing
   • Refer to Break Carrier Plate Seal, Removing and Installing  .
5. Brake Carrier with Brake Shoes
   • Refer to Brake Carrier Plate, Removing and Installing  .
6. Internal Multi-Point Bolt
   • Quantity: 3
   • Replace after removing
   • M8 x 25
   • 20 Nm + 45°
7. Plugs
8. Brake Drum
   • Wear limit. Refer to Check and Adjustment Values .
9. Bolt
   • Refer to Overview - Wheel Bearing .
10. Torx Bolt
    • M6 x 16
    • 8 Nm
11. Brake Hose with Ring Connection and Banjo Bolt
    • Make sure it is in the installation position
    • Banjo bolt at the brake cylinder: 45 Nm
12. Clip
13. Bracket
14. Brake Line
    • 14 Nm
