Overview - Screen Separator

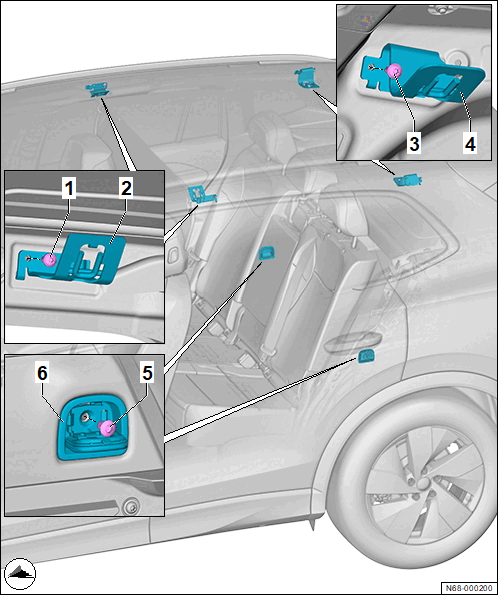

Fig 1: Identifying Screen Separator Components
GWWN68-000200Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Upper Rear Screen Separator Bracket
  2. Bolt
    • Quantity: 2
    • 8 Nm
  3. Front Upper Screen Separator Bracket
  4. Bolt
    • Quantity: 2
    • 20 Nm
  5. Lower Screen Separator Bracket
