Front Passenger Seat Adjustment Control Head, Front Passenger Memory Seat Control Module

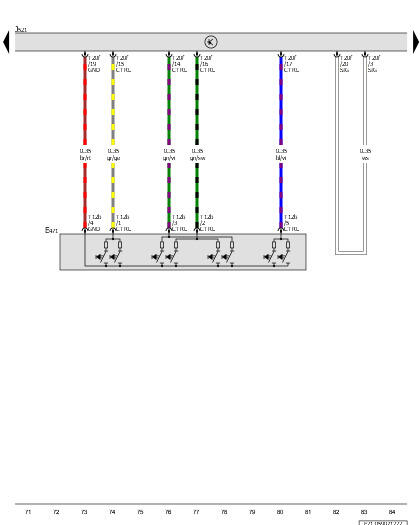

GWWE21-059071222Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E471

Front Passenger Seat Adjustment Control Head

J521

Front Passenger Memory Seat Control Module

T12b

12-Pin Connector, Black

T20f

20-Pin Connector, Black
