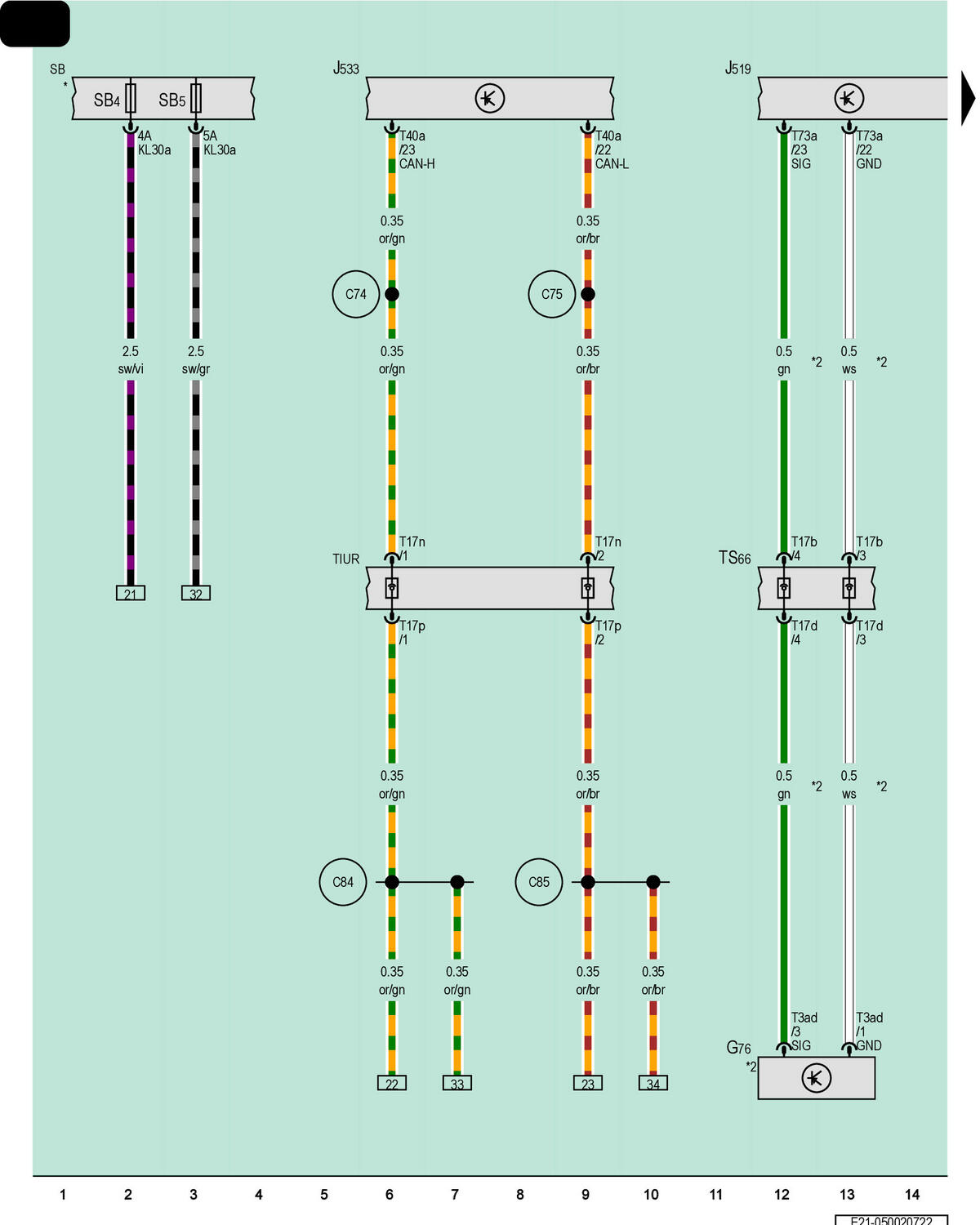

Left Rear Level Control System Sensor, Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G76

Left Rear Level Control System Sensor

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

SB

Fuse Panel B

SB4

Fuse 4 (On Fuse Panel B)

SB5

Fuse 5 (On Fuse Panel B)

T3ad

3-Pin Connector, Black

T17b

17-Pin Connector, Brown

T17d

17-Pin Connector, Brown

T17n

17-Pin Connector, Brown

T17p

17-Pin Connector, Brown

T40a

40-Pin Connector, Black

T73a

73-Pin Connector, Black

TIUR

Coupling Point in Interior, Bottom Right

TS66

Rear Suspension Coupling Point

C74

Connection 1 (CAN Bus Variable Headlamps AFS, High) in Main Wiring Harness

C75

Connection 1 (CAN Bus Variable Headlamps AFS, Low) in Main Wiring Harness

C84

Connection 1 (CAN Bus Variable Headlamps AFS, High) in Engine/Motor Compartment

C85

Connection 1 (CAN Bus Variable Headlamps AFS, Low) in Engine/Motor Compartment

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

For Vehicles Without Adaptive Chassis
