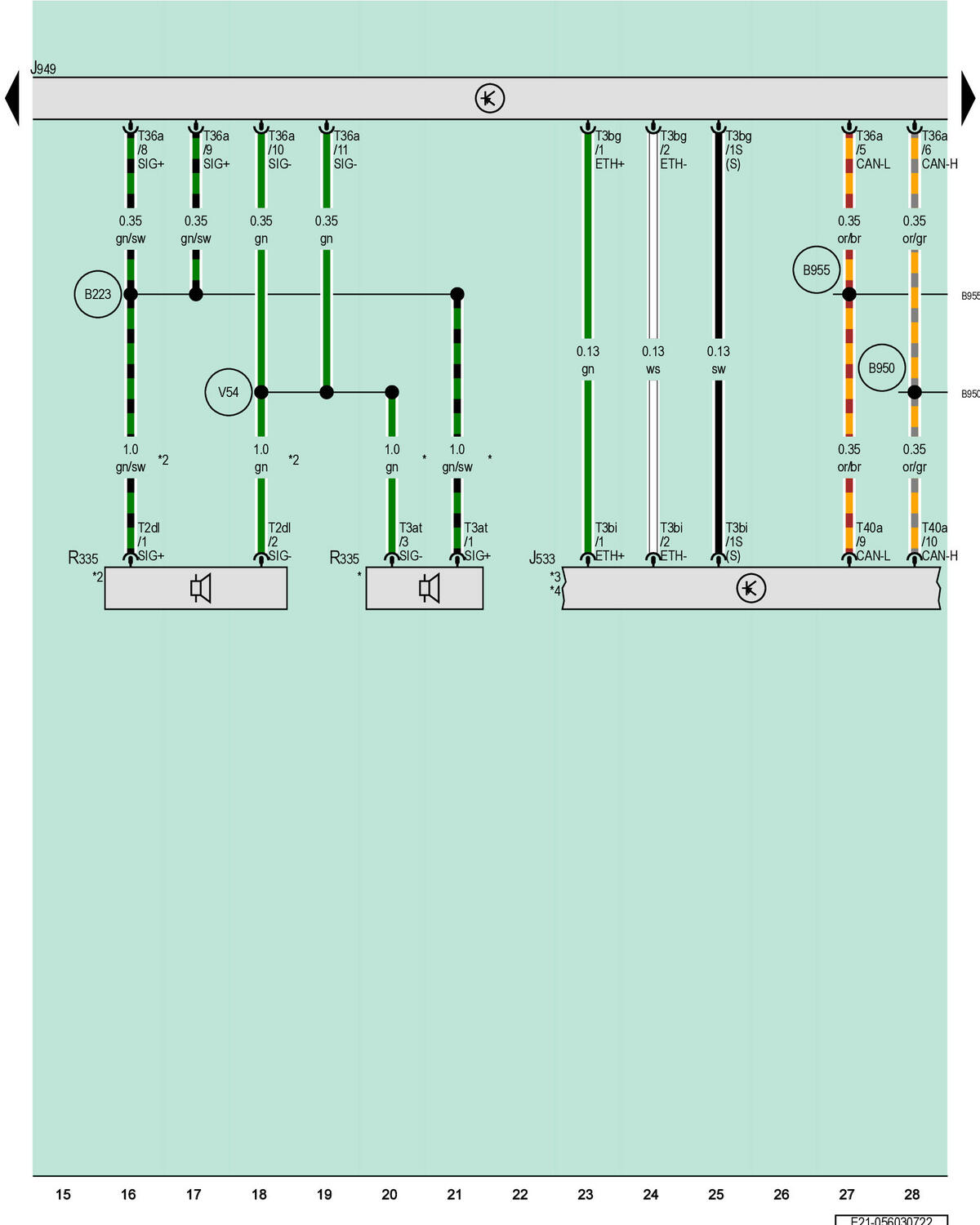

Data Bus On Board Diagnostic Interface, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Speaker

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J949

Control Module for Emergency Call Module and Communication Unit

R335

Emergency Call Module Speaker

T2dl

2-Pin Connector, Black

T3at

3-Pin Connector, Black

T3bg

3-Pin Connector, Black

T3bi

3-Pin Connector, Black

T36a

36-Pin Connector, Black

T40a

40-Pin Connector, Black

B223

Navigation System/Telephone Connection (in Interior Wiring Harness)

B950

Connection 1 (CAN Bus Connectivity High) in Main Wiring Harness

B955

Connection 1 (CAN Bus Connectivity Low) in Main Wiring Harness

V54

Telephone Connection 1 (in Main Wiring Harness)

*

For Vehicles Without Sound System

*2

For Vehicles with Sound System

*3

Refer to the Applicable Communication CAN Bus Network Data Bus Wiring Diagram

*4

Refer to the Applicable Ethernet Network Data Bus Wiring Diagram
