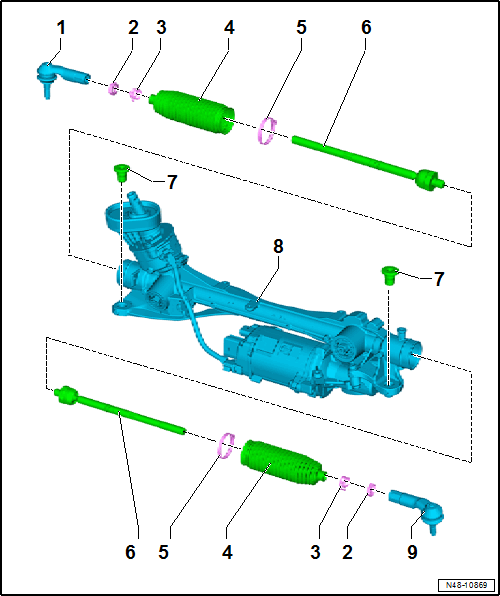

Overview - Steering Gear, Tie Rods
- Left Tie Rod End
- Installation position. Refer to Installing - Make sure the correct tie rod end is installed on each side. .
- Removing and Installing. Refer to TIE ROD END, REMOVING AND INSTALLING .
- Installation position. Refer to Installing - Make sure the correct tie rod end is installed on each side. .
- Allocation. Refer to the Parts Information.
- Nut
- 70 Nm
- The nut must be counterheld on the tie rod end using a wrench when loosening and tightening.
- Clamp
- Boot
- Must not be twisted after toe is adjusted
- Removing and Installing. Refer to BOOT, REMOVING AND INSTALLING .
- Clamp
- Replace
- Tensioning. Refer to Installing - Clamp the new clamp -1- using the Locking Pliers:VAS6199. .
- Tie Rod
- 100 Nm
- Removing and Installing. Refer to TIE ROD, REMOVING AND INSTALLING .
- Threaded Bushing
- Removing and Installing. Refer to THREADED BUSHING, REMOVING AND INSTALLING .
- Steering Gear
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to STEERING GEAR, REMOVING AND INSTALLING .
- Right Tie Rod End
- Installation position. Refer to Installing - Make sure the correct tie rod end is installed on each side. .
- Removing and Installing. Refer to TIE ROD END, REMOVING AND INSTALLING .
- Installation position. Refer to Installing - Make sure the correct tie rod end is installed on each side. .
- Allocation. Refer to the Parts Information.
