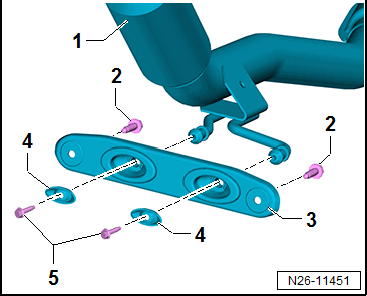

Overview - Front Exhaust Pipe Bearing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Exhaust Pipe
- Overview. Refer to OVERVIEW - EMISSIONS CONTROL SYSTEM .
Bolt
- 20 Nm
Bracket
- Removing and Installing. Refer to FRONT EXHAUST PIPE BRACKET, REMOVING AND INSTALLING .
Lock Washer
- Only installed on all vehicles
Pop Rivet
- If the bracket was replaced, drill out the pop rivets and remove the lock washer
- After replacing the bracket, rivet the lock washer again
