Overview - Electric Coolant Pump

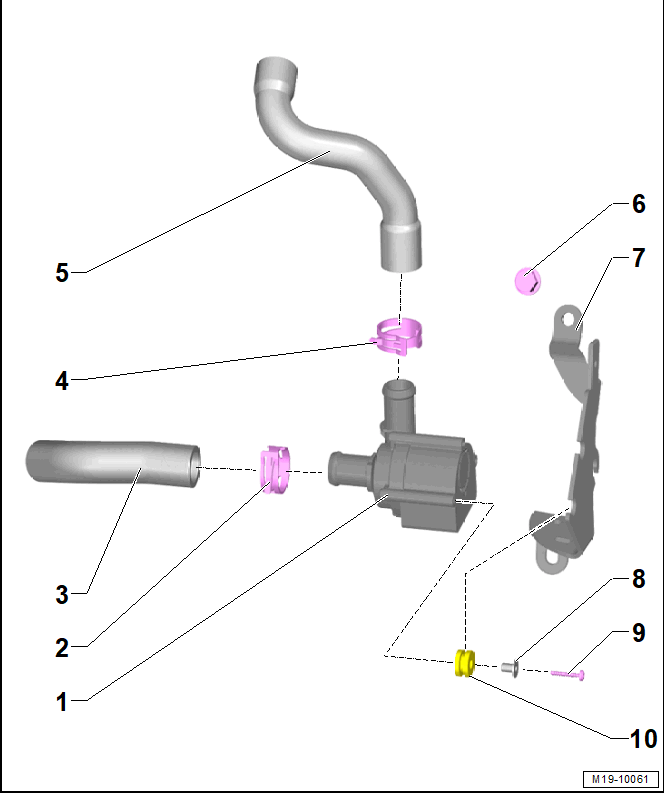

Fig 1: Exploded View Of Electric Coolant Pump
GWWM19-10061Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Charge Air Cooling Pump -V188-
  2. Hose Clamp
  3. Coolant Hose
  4. Hose Clamp
  5. Coolant Hose
  6. Bolt
    • 20 Nm
    • Quantity: 2
  7. Bracket
  8. Guide Sleeve
    • Quantity: 3
  9. Bolt
    • 3 Nm
    • Quantity: 3
  10. Rubber Buffer
    • Quantity: 3
