Turbocharger Connections, Removing And Installing: Removing

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Release the breather line -2 and 3- from the connection -1- and remove.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To do so push together the ridge for the locking mechanism on both sides on the breather lines.

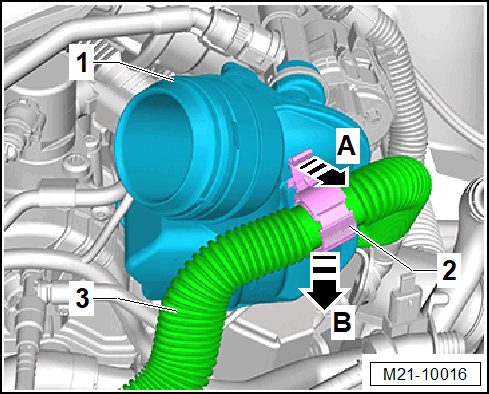

-- Release the retainer in direction of -arrow A- and free up the secondary air injection hose -3- with the bracket -2- from the connection -1- in direction of -arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

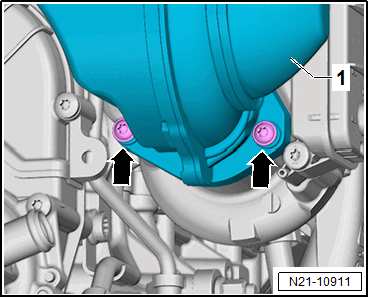

-- Remove the bolts (permanent) -arrows- and detach the connection -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
