Overview - Lines On Turbocharger

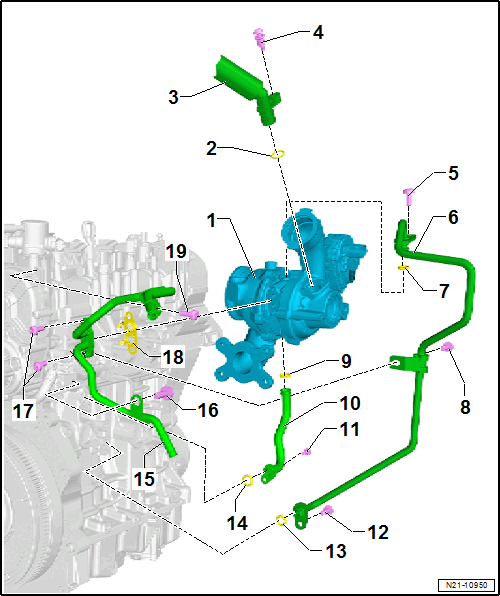

Fig 1: Exploded View Of Lines On Turbocharger
GWWN21-10950Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Turbocharger
  2. O-Ring
    • Replace crankshaft housing ventilation hose if damaged -item  3-
  3. Hose
    • For the crankcase ventilation
  4. Bolt
    • 5 Nm
  5. Bolt
    • 9 Nm
  6. Oil Supply Line
    • Replace the plastic container after loosing the bolt -item  8-
  7. O-Ring
    • Replace after removing
  8. Bolt
    • 9 Nm
  9. O-Ring
    • Replace after removing
  10. Oil Return Line
  11. Bolt
    • 9 Nm
  12. Bolt
    • 9 Nm
    • Replace
  13. O-Ring
    • Replace after removing
  14. O-Ring
    • Replace after removing
  15. Coolant Lines
    • Supply and return
  16. Bolt
    • 8 Nm
  17. Bolt
    • 8 Nm
  18. Seal
    • Replace after removing
  19. Bolt
    • 8 Nm
