Charge Air Pressure Control Module -GX34-, REMOVING AND INSTALLING: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the turbocharger connection. Refer to TURBOCHARGER CONNECTIONS, REMOVING AND INSTALLING .

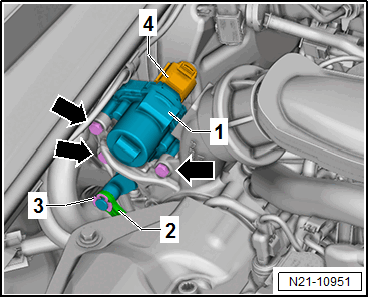

-- Release and remove the connector -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clamp -3- and remove the control rod -2- from the adjusting lever.

-- Remove the bolts -arrows- and the Charge Air Pressure Control Module -GX34-.
