Charge Air Pressure Sensor -GX26-, REMOVING AND INSTALLING: Removing

-- Remove the Throttle Valve Control Module -GX3-. Refer to Throttle Valve Control Module -GX3-, REMOVING AND INSTALLING .

-- Release the connector and disconnect it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To do so pull the tab -arrow- slightly and remove the connector.

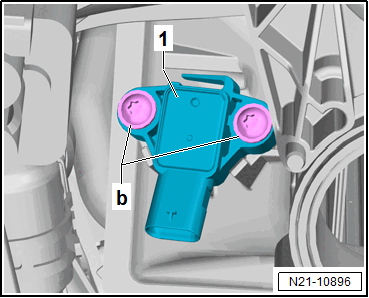

-- Remove the bolts -b-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Charge Air Pressure Sensor -GX26- -1-.
