Air Duct Pipe Between Charge Air Cooler And Turbocharger, Removing And Installing: Removing

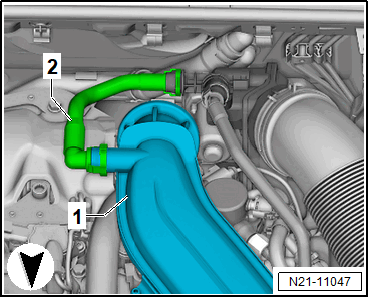

-- Release the breather line -2- on the air duct pipe -1- and remove.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To do so push together the locking mechanism ridge on both sides.

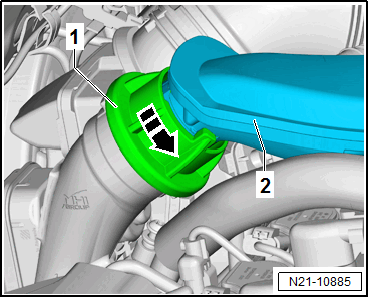

-- Turn the locking ring -1- for the air duct pipe -2- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

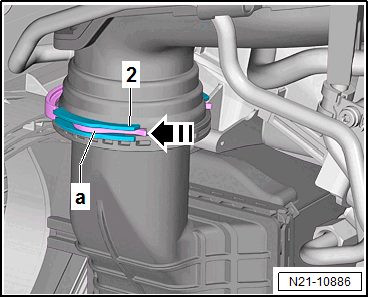

-- Release the retaining bracket -a- on both sides on the ends -2- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

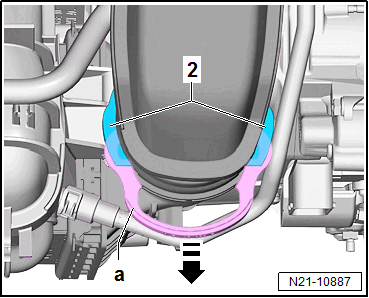

-- Pull the retaining bracket -a- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the retaining bracket -a- on the locking mechanism -2-.

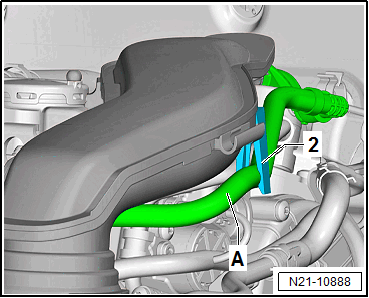

-- Unclip the fuel line -A- on the air duct pipe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air duct pipe from the charge air cooler.

-- By lightly rotating pull the air duct pipe from the turbocharger.
