Air Duct Pipe Between Charge Air Cooler And Intake Manifold, Removing And Installing: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

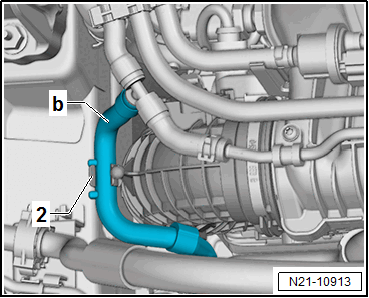

-- Remove the hose -b- out of the retainer on the air duct pipe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

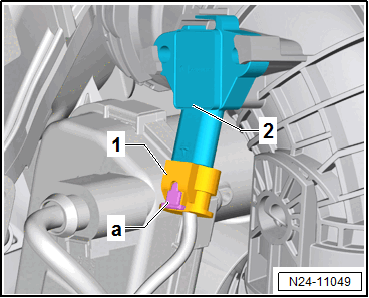

-- Release and disconnect the connectors, to do so loosen the tab -a- from the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

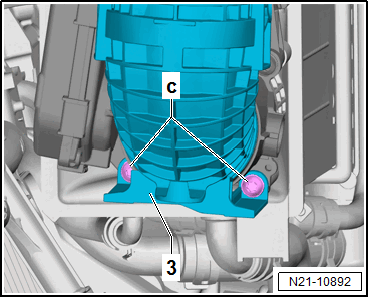

-- Remove the bolts -c- between the retainer -3- and the Throttle Valve Control Module -GX3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

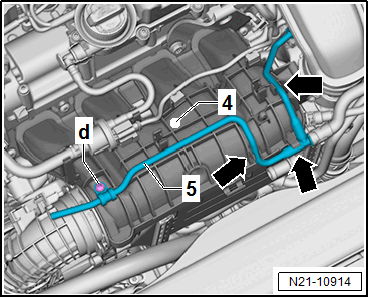

-- Remove the bolt -d- for the coolant pipe -5-. Unclip the coolant pipe -5- from the points -arrows- out of the intake manifold -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

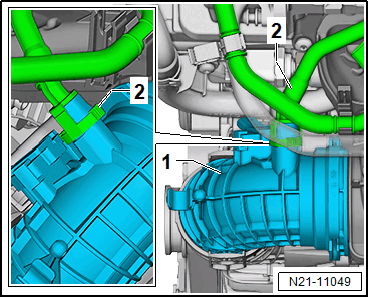

-- Release the breather line -2- on the air duct pipe -1- and remove.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the breather line from the intake manifold -6-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

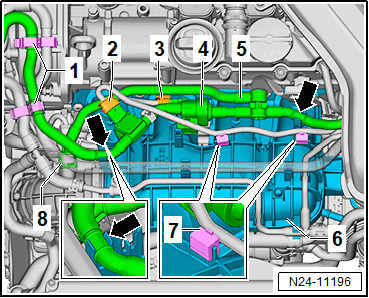

-- Remove the Activated Charcoal Filter Air Flushing Pressure Sensor -GX44- -2- from the intake manifold -6-.

-- Unclip the right front breather line -5- from the in the front -6- -arrow-.

-- Remove the EVAP Canister Purge Regulator Valve 1 -N80- -4- from the intake manifold.

-- Lift the retaining bracket -b- from the tip -arrow-. Remove the retaining bracket out of the groove on the air duct pipe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

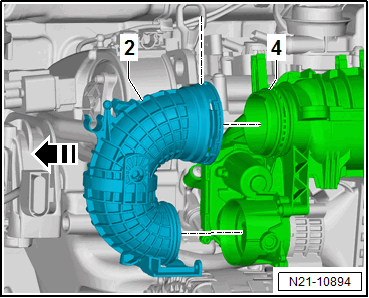

-- Pull the air duct pipe -2- out of the Throttle Valve Control Module -GX3- and the intake manifold -4- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
