Air Duct Pipe Between Charge Air Cooler And Intake Manifold, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

-- Replace the O-rings and coat with engine oil.

-- Pay attention to the correct positioning of the O-rings.

-- Always replace the retaining bracket -b- after removal.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

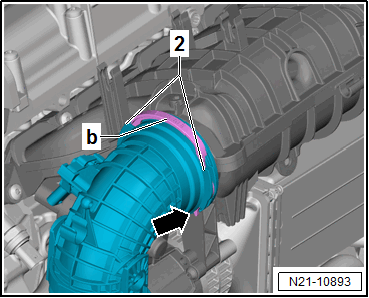

-- Push the retaining bracket -b- in the groove -2- of the air duct pipe.

-- Tighten the bolts with the Mini Torque Wrench :VAS6854  , Socket - T30 :T10405  and Torque Wrench 1783 - 1/4" Drive Ratchet :VAS6234
