Relays On Fuse Panel C -SC-, From October 2020

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

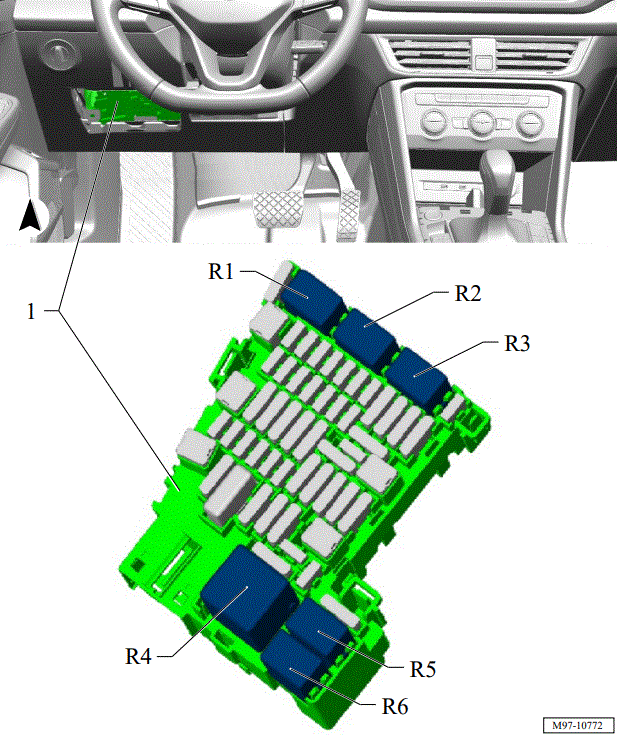

1. 1 -  Fuse Panel C -SC-
2. R1 -  Vacuum Pump Relay -J318-
3. R2 -  A/C Clutch Relay -J44-
4. R3 -  Not used
5. R4 -  Terminal 15 Power Supply Relay -J329-
6. R5 -  Rear Window Defogger Relay -J9-
7. R6 -  Sockets Relay -J807-
